FSS130D - N-Channel Power MOSFET

Intersil Corporation

The FSS130D by Intersil Corporation is a N-Channel Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

FSS130D N-Channel Power MOSFET by Intersil Corporation - Datasheet Preview — Official preview page of the **FSS130D** N-Channel Power MOSFET datasheet (Intersil Corporation).

Datasheet Details

Part number	FSS130D
Manufacturer	Intersil Corporation
File Size	45.08 KB
Description	N-Channel Power MOSFET
Datasheet	FSS130D_IntersilCorporation.pdf

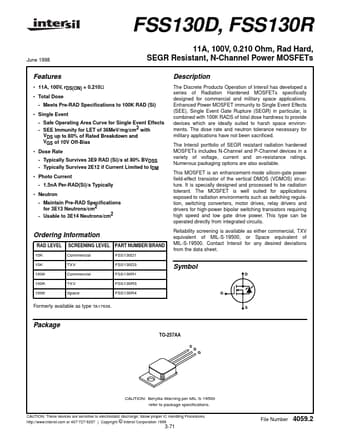

Additional preview pages of the FSS130D datasheet.

FSS130D Product details

Description

The Discrete Products Operation of Intersil has developed a series of Radiation Hardened MOSFETs speciﬁcally designed for commercial and military space applications.

Features

11A, 100V, rDS(ON) = 0.210Ω.
Total Dose - Meets Pre-RAD Speciﬁcations to 100K RAD (Si).
Single Event - Safe Operating Area Curve for Single Event Effects - SEE Immunity for LET of 36MeV/mg/cm2 with VDS up to 80% of Rated Breakdown and VGS of 10V Off-Bias.
Dose Rate - Typically Survives 3E9 RAD (Si)/s at 80% BVDSS - Typically Survives 2E12 if Current Limited to IDM.
Photo Current - 1.5nA Per-RAD(Si)/s Typically.
Neutron - Maintain Pre-RAD Spe.
