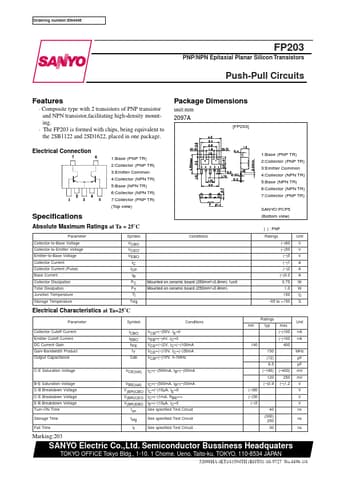

FP203 - Push-Pull Circuits

Sanyo Semicon Device

Datasheet Details

Composite type with 2 transistors of PNP transistor and NPN transistor,facilitating high-density mounting.
The FP203 is formed with chips, being equivalent to the 2SB1122 and 2SD1622, placed in one package. Electrical Connection 1:Base (PNP TR) 2:Collector (PNP TR) 3:Emitter Common 4:Collector (NPN TR) 5:Base (NPN TR) 6:Collector (NPN TR) 7:Collector (PNP TR) (Top view) Package Dimensions unit:mm 2097A [FP203] 1:Base (PNP TR) 2:Collector (PNP TR) 3:Emitter Common 4:Collector (NPN T.
