FP201 - High-Frequency Amp/ Differential Amp Applications

Sanyo Semicon Device

Datasheet Details

Part number	FP201
Manufacturer	Sanyo Semicon Device
File Size	83.05 KB
Description	High-Frequency Amp/ Differential Amp Applications
Datasheet	FP201_SanyoSemiconDevice.pdf

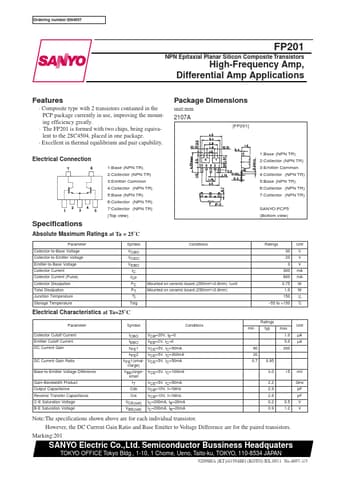

Composite type with 2 transistors contained in the PCP package currently in use, improving the mounting efficiency greatly.
The FP201 is formed with two chips, being equivalent to the 2SC4504, placed in one package.
Excellent in thermal equilibrium and pair capability. Electrical Connection 1:Base (NPN TR) 2:Collector (NPN TR) 3:Emitter Common 4:Collector (NPN TR) 5:Base (NPN TR) 6:Collector (NPN TR) 7:Collector (NPN TR) (Top view) Package Dimensions unit:mm 2107A [FP201] 1:B.
