DTA6E-N - 6A Bidirectional Thyristor

Product Overview

Sanyo Semicon Device

Part number	DTA6E-N
Manufacturer	Sanyo Semicon Device
File Size	153.71 KB
Description	6A Bidirectional Thyristor
Datasheet	DTA6E-N Datasheet

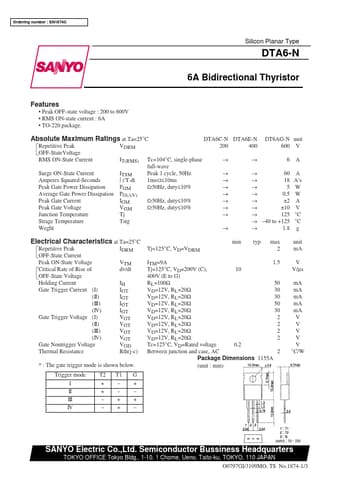

Additional preview pages of the DTA6E-N datasheet.

Peak OFF-state voltage : 200 to 600V.
RMS ON-state current : 6A.
TO-220 package. Absolute Maximum Ratings at Ta=25°C Repetitive Peak OFF-StateVoltage RMS ON-State Current Surge ON-State Current Amperes Squared-Seconds Peak Gate Power Dissipation Average Gate Power Dissipation Peak Gate Current Peak Gate Voltage Junction Temperature Strage Temperature Weght VDRM IT(RMS) ITSM ∫ i2T.
dt PGM PG(AV) IGM VGM Tj Tstg Tc=104°C, single-phase full-wave Peak 1 cycle, 50Hz 1m.
