DTA013ZUB - PNP -100mA -50V Digital Transistors

Download the DTA013ZUB datasheet PDF. This datasheet also covers the DTA013Z variant, as both devices belong to the same pnp -100ma -50v digital transistors family and are provided as variant models within a single manufacturer datasheet.

Features

  • 1) Built-In Biasing Resistors, R1 = 1kΩ, 　R2 = 10kΩ 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) The bias resistors consist of thin-film resistors 　with complete isolation to allow negative biasing 　of the input. They also have the advantage of 　completely eliminating parasitic effects. 4) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 5) Complementary N.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DTA013Z-Rohm.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DTA013ZUB
Manufacturer ROHM
File Size 1.09 MB
Description PNP -100mA -50V Digital Transistors
Datasheet download datasheet DTA013ZUB Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DTA05 0.5A Bidirectional Thyristor Sanyo Semicon Device
DTA05B 0.5A Bidirectional Thyristor Sanyo Semicon Device
DTA05C 0.5A Bidirectional Thyristor Sanyo Semicon Device
DTA05E 0.5A Bidirectional Thyristor Sanyo Semicon Device
DTA08 0.8A Bidirectional Thyristor Sanyo Semicon Device

Other Datasheets by ROHM

Part Number Description
DTA013Z PNP -100mA -50V Digital Transistors
DTA013ZEB PNP -100mA -50V Digital Transistors
DTA013ZM PNP -100mA -50V Digital Transistors
DTA014EEB 100mA/-50V Digital transistors
DTA014EM 100mA/-50V Digital transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

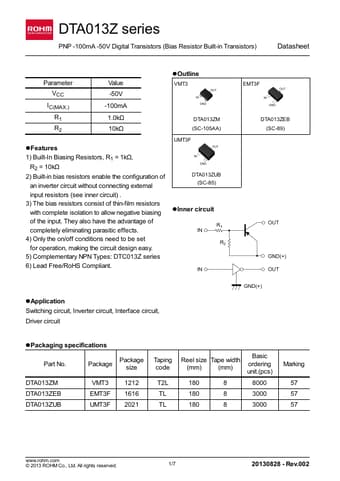

DTA013Z series PNP -100mA -50V Digital Transistors (Bias Resistor Built-in Transistors) Datasheet Parameter VCC IC(MAX.) R1 R2 Value -50V -100mA 1.0kΩ 10kΩ lFeatures 1) Built-In Biasing Resistors, R1 = 1kΩ, 　R2 = 10kΩ 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) The bias resistors consist of thin-film resistors 　with complete isolation to allow negative biasing 　of the input. They also have the advantage of 　completely eliminating parasitic effects. 4) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 5) Complementary NPN Types: DTC013Z series 6) Lead Free/RoHS Compliant.
