C3503 2SC3503

C3503 Description

Ordering number:EN1426B PNP/NPN Epitaxial Planar Silicon Transistors 2SA1381/2SC3503 High-Definition CRT Display, Video Output Applications .

C3503 Features

* Package Dimensions unit:mm 2009A [2SA1381/2SC3503]
* High breakdown voltage : VCEO≥300V.
* Small reverse transfer capacitance and excellent high frequency characteristic : Cre=1.8 pF (NPN), 2.3pF (PNP), VCB=30V.
* Adoption of MBIT process. JEDEC : TO-126 Specifications Absolute Maximu

📥 Download Datasheet

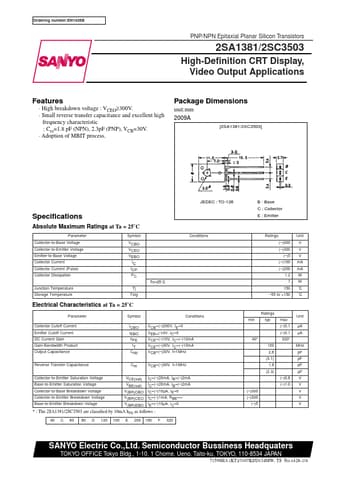

Preview of C3503 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C3503
Manufacturer
Sanyo Semicon Device
File Size
156.42 KB
Datasheet
C3503-SanyoSemiconDevice.pdf
Description
2SC3503
