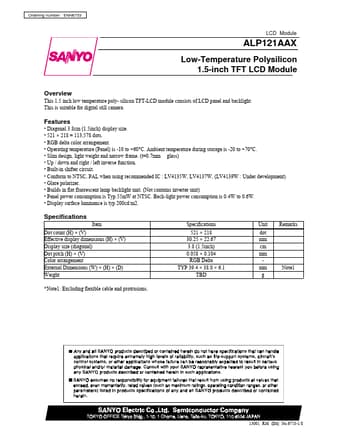

ALP121AAX - Low-Temperature Polysilicon 1.5-inch TFT LCD Module

Sanyo Semicon Device

Datasheet Details

Part number	ALP121AAX
Manufacturer	Sanyo Semicon Device
File Size	680.87 KB
Description	Low-Temperature Polysilicon 1.5-inch TFT LCD Module
Datasheet	ALP121AAX_SanyoSemiconDevice.pdf

Diagonal 3.8cm (1.5inch) display size.
521 × 218 = 113,578 dots.
RGB delta color arrangement.
Operating temperature (Panel) is -10 to +60°C. Ambient temperature during storage is -20 to +70°C.
Slim design, light weight and narrow frame. (t=0.7mm glass).
Up / down and right / left inverse function.
Built-in shifter circuit.
Conform to NTSC, PAL when using recommended IC : LV4135W, LV4137W, (LV4139W : Under development).
