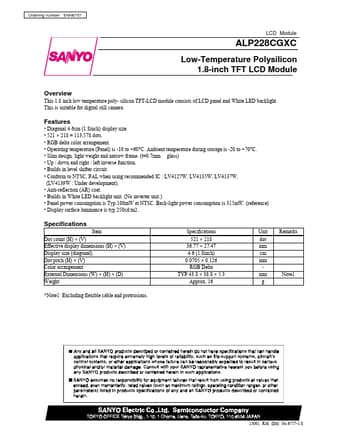

ALP228CGXC - Low-Temperature Polysilicon 1.8-inch TFT LCD Module

Sanyo Semicon Device

Datasheet Details

Part number	ALP228CGXC
Manufacturer	Sanyo Semicon Device
File Size	639.56 KB
Description	Low-Temperature Polysilicon 1.8-inch TFT LCD Module
Datasheet	ALP228CGXC_SanyoSemiconDevice.pdf

Diagonal 4.6cm (1.8inch) display size.
521 × 218 = 113,578 dots.
RGB delta color arrangement.
Operating temperature (Panel) is -10 to +60°C. Ambient temperature during storage is -20 to +70°C.
Slim design, light weight and narrow frame. (t=0.7mm glass).
Up / down and right / left inverse function.
Builds in level shifter circuit.
Conform to NTSC, PAL when using recommended IC : LV4127W, LV4135W, LV4137W, (LV4139W : Un.
