2SK2152 - N-Channel Silicon MOSFET

Features

  • Low ON resistance.
  • Ultrahigh-speed switching.
  • Low-voltage drive. N-Channel Silicon MOSFET 2SK2152 Ultrahigh-Speed Switching.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK215 Silicon N-Channel MOS FET Hitachi Semiconductor
2SK215 N-Channel MOSFET Renesas Technology
2SK2150 N-Channel MOSFET Transistor Inchange Semiconductor
2SK2150 N-Channel MOSFET Toshiba Semiconductor
2SK2151 P-Channel 30V MOSFET VBsemi

Other Datasheets by SANYO (now Panasonic)

Part Number Description
2SK2151 N-Channel Silicon MOSFET
2SK2154 N-Channel Silicon MOSFET
2SK2108 N-Channel Silicon MOSFET
2SK212 N-Channel MOSFET
2SK2160 N-Channel Silicon MOSFET

Full PDF Text Transcription

Click to expand full text

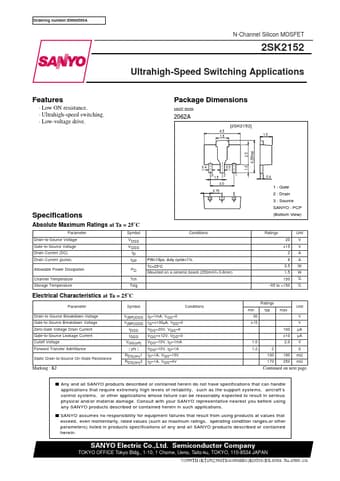

Ordering number:ENN4569A Features · Low ON resistance. · Ultrahigh-speed switching. · Low-voltage drive. N-Channel Silicon MOSFET 2SK2152 Ultrahigh-Speed Switching Applications Package Dimensions unit:mm 2062A [2SK2152] 4.5 1.6 1.5 1.0 2.5 4.25max 0.4 0.5 32 1.5 3.0 1 0.75 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Drain-to-Source Voltage Gate-to-Source Voltage Drain Current (DC) Drain Current (pulse) Symbol VDSS VGSS ID IDP Allowable Power Dissipation PD Channel Temperature Storage Temperature Tch Tstg Conditions PW≤10µs, duty cycle≤1% Tc=25°C Mounted on a ceramic board (250mm2× 0.
