2SC4827 - PNP/NPN Epitaxial Planar Silicon Transistor

Name: 2SC4827
SKU: 2SC4827-239319

Sanyo Semicon Device

The 2SC4827 by Sanyo Semicon Device is a PNP/NPN Epitaxial Planar Silicon Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	2SC4827
Manufacturer	Sanyo Semicon Device
File Size	107.37 KB
Description	PNP/NPN Epitaxial Planar Silicon Transistor
Datasheet	2SC4827_SanyoSemiconDevice.pdf

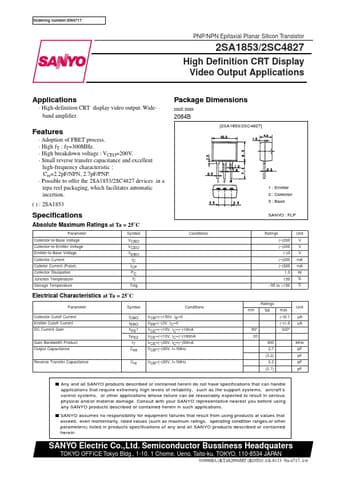

Additional preview pages of the 2SC4827 datasheet.

Adoption of FBET process.
High fT : fT=300MHz.
High breakdown voltage : VCEO=200V.
Small reverse transfer capacitance and excellent high-frequency characteristic : Cre=2.2pF/NPN, 2.7pF/PNP.
Possible to offer the 2SA1853/2SC4827 devices in a tepa reel packaging, which facilitates automatic incertion. ( ) : 2SA1853 Package Dimensions unit:mm 2084B [2SA1853/2SC4827] 1 : Emitter 2 : Collector 3 : Base Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Co.
