2SC4826 - NPN TRANSISTOR

Sanyo Semicon Device

📥 Download Datasheet

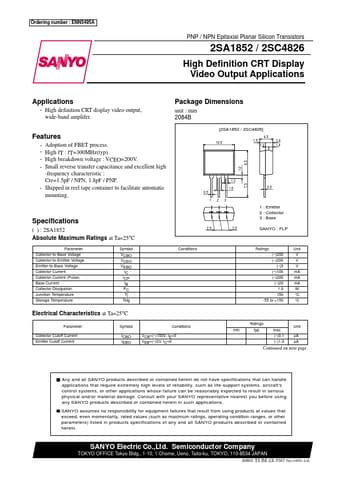

2SC4826 Datasheet Preview — Preview of 2SC4826 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SC4826
Manufacturer	Sanyo Semicon Device
File Size	26.82 KB
Description	NPN TRANSISTOR
Datasheet	2SC4826_SanyoSemiconDevice.pdf

2SC4826 Product details

Features

Adoption of FBET process. High fT : fT=300MHz(typ). High breakdown voltage : VCEO=200V. Small reverse transfer capacitance and excellent high -frequency characteristic : Cre=1.5pF / NPN, 1.8pF / PNP. Shipped in reel tape container to facilitate antomatic mounting. 10.5 1.9 4.5 1.2 2.6 1.4 1.2 7.5 1.6 0.5 0.5 1 2 3 1.0 8.5 Specifications ( ) : 2SA1852 Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to.
