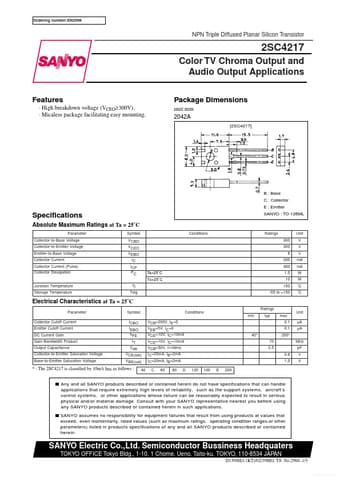

2SC4217 - NPN Triple Diffused Planar Silicon Transistor

Sanyo Semicon Device

Datasheet Details

Part number	2SC4217
Manufacturer	Sanyo Semicon Device
File Size	105.36 KB
Description	NPN Triple Diffused Planar Silicon Transistor
Datasheet	2SC4217_SanyoSemiconDevice.pdf

High breakdown voltage (VCEO≥300V).
Micaless package facilitating easy mounting. Package Dimensions unit:mm 2042A [2SC4217] Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC ICP PC Tj Tstg Ta=25˚C Tc=25˚C B : Base C : Collector E : Emitter SANYO : TO-126ML Con.
