2SC3953 - Silicon NPN Transistor

Features

  • High fT : fT=400MHz.
  • High breakdown voltage : VCEO=120Vmin.
  • Small reverse transfer capacitance and excellent HF response : Cre=1.7pF/NPN, 2.2pF/PNP.
  • Complementary PNP and NPN types.
  • Adoption of FBET process.
  • Micaless type : TO-126 plastic package. 1.4 4.0 1.0 3.3 3.0 1.6 0.8 1.5 3.0 0.8 0.75 7.5 15.5 11.0 0.7 1 2 3 ( ) : 2SA1538 4.8 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Vo.

📥 Download Datasheet

📁 Similar Datasheet

  • 2SC3957 - Silicon NPN Transistor (Hitachi Semiconductor)
  • 2SC395A - SILICON NPN TRANSISTOR (Toshiba)
  • 2SC3900 - Epitaxial Planar Silicon Transistor (Sanyo)
  • 2SC3901 - PNP / NPN EPITAXIAL PLANAR SILICON TRANSISTORS (Sanyo)
  • 2SC3901 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC3902 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3902 - Bipolar Transistor (ON Semiconductor)
  • 2SC3902 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC3902 - NPN Transistor (INCHANGE)
  • 2SC3904 - Silicon NPN Transistor (Panasonic Semiconductor)
Other Datasheets by Sanyo Semicon Device
  • 2SC3950 - Silicon NPN Transistor
  • 2SC3951 - Silicon NPN Transistor
  • 2SC3952 - Silicon NPN Transistor
  • 2SC3954 - Silicon NPN Transistor
  • 2SC3955 - Silicon NPN Transistor
  • 2SC3956 - Silicon NPN Transistor
  • 2SC3902 - PNP/NPN Transistors
  • 2SC3912 - PNP/NPN Epitaxial Planar Silicon Transistors

Full PDF Text Transcription

Click to expand full text

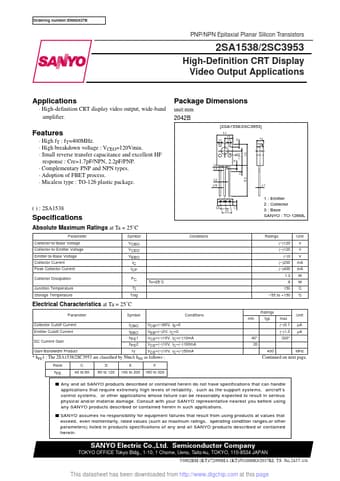

Ordering number:ENN2437B PNP/NPN Epitaxial Planar Silicon Transistors 2SA1538/2SC3953 High-Definition CRT Display Video Output Applications Applications · High-definition CRT display video output, wide-band amplifier. Package Dimensions unit:mm 2042B [2SA1538/2SC3953] 8.0 1.0 Features · High fT : fT=400MHz. · High breakdown voltage : VCEO=120Vmin. · Small reverse transfer capacitance and excellent HF response : Cre=1.7pF/NPN, 2.2pF/PNP. · Complementary PNP and NPN types. · Adoption of FBET process. · Micaless type : TO-126 plastic package. 1.4 4.0 1.0 3.3 3.0 1.6 0.8 1.5 3.0 0.8 0.75 7.5 15.5 11.0 0.7 1 2 3 ( ) : 2SA1538 4.
