2SC3675 - NPN Transistor

Sanyo Semicon Device

📥 Download Datasheet

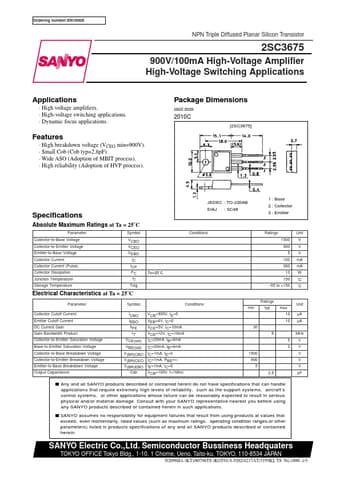

2SC3675 Datasheet Preview — Preview of 2SC3675 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SC3675
Manufacturer	Sanyo Semicon Device
File Size	97.92 KB
Description	NPN Transistor
Datasheet	2SC3675_SanyoSemiconDevice.pdf

2SC3675 Product details

Features

High breakdown voltage (VCEO min=900V).
Small Cob (Cob typ=2.8pF).
Wide ASO (Adoption of MBIT process).
High reliability (Adoption of HVP process). JEDEC : TO-220AB EIAJ : SC46 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC ICP PC Tj Tstg Tc=25˚C.
