STRW6750F, STR-W6750F Power-IC

STRW6750F Description

Power IC for Quasi-Resonant Type Switching Power Supply with High Efficiency and Low Noise in Full Load Range STR-W6750F *General .
The STR-W6750F is power IC for quasi-resonant type switching power supply, incorporating a power MOSFET and a controller IC.

STRW6750F Features

* Quasi-resonant operation mode Achieves the optimal high efficiency and low noise power supply systems.
* Current mode control
* Built-in PWM oscillator The PWM operates with the minimum frequency of around 22kHz, until the quasi-resonant signal becomes valid, reduces the stress on comp

STRW6750F Applications

* Switching power supplies for
* LCD-TVs, PDP-TVs, CRT-TVs and Digital consumer equipment
* Home appliances
* OA equipments
* Industry machines
* Communication devices
* Typical application circuit +B ErrAmp P S1 GND D 1 4 VCC D S2 Standby ON/OFF LowB Standby Out GND Reg S

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STRW6750F, STR-W6750F. Please refer to the document for exact specifications by model.

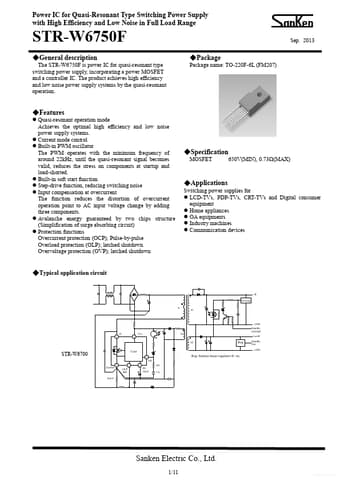

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STRW6750F, STR-W6750F
Manufacturer
Sanken ↗
File Size
1.03 MB
Datasheet
STR-W6750F-Sanken.pdf
Description
Power-IC
Note
This datasheet PDF includes multiple part numbers: STRW6750F, STR-W6750F.
Please refer to the document for exact specifications by model.
