STRW6051S, STRW605xS Current Mode Control PWM Regulator

STRW6051S Description

STR-W605xS Current Mode Control PWM Regulator IC For Switching Power Supplies .
The STR-W605xS series are power ICs for switching power supplies, incorporating a power MOSFET and a current mode PWM controller IC.

STRW6051S Features

* ▪ TO-220F power package with 30 to 90 W power output ▪ Current Mode PWM control ▪ Built-in Random Switching function, reducing EMI noise, and simplifying EMI filters, and therefore reducing cost ▪ Built-in Slope Compensation function, avoiding subharmonic oscillation ▪ Built-in Auto Standby function

STRW6051S Applications

* For switching power supplies used in:
* White goods
* Consumer electronics
* Office automation
* Industrial equipment
* Communication equipment Package: 6-Pin fully molded TO-220F-6L (FM207) http://www. DataSheet4U. net/ Not to scale Typical Application VAC

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STRW6051S, STRW605xS. Please refer to the document for exact specifications by model.

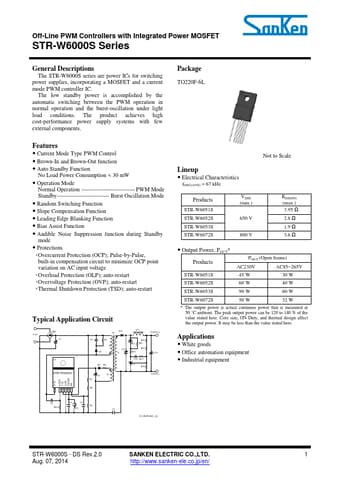

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STRW6051S, STRW605xS
Manufacturer
Sanken ↗
File Size
730.09 KB
Datasheet
STRW605xS_Sanken.pdf
Description
Current Mode Control PWM Regulator
Note
This datasheet PDF includes multiple part numbers: STRW6051S, STRW605xS.
Please refer to the document for exact specifications by model.
