STR-L400 - Power-IC

Sanken

📥 Download Datasheet

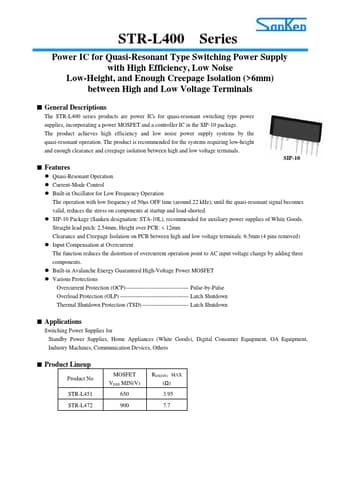

STR-L400 Datasheet Preview — Preview of STR-L400 PDF

Datasheet Details

Part number: STR-L400
Manufacturer: Sanken ↗
File Size: 119.36 KB
Datasheet: STR-L400_Sanken.pdf
Description: Power-IC

STR-L400 Product details

Description

The STR-L400 series products are power ICs for quasi-resonant switching type power supplies, incorporating a power MOSFET and a controller IC in the SIP-10 package.

Features

s Quasi-Resonant Operation Current-Mode Control Built-in Oscillator for Low Frequency Operation The operation with low frequency of 50µs OFF time (around 22 kHz), until the quasi-resonant signal becomes valid, reduces the stress on components at startup and load-shorted. SIP-10 Package (Sanken designation: STA-10L), recommended for auxiliary power supplies of White Goods. Straight lead pitch: 2.54mm, Height over PCB: < 12mm Clearance and Creepage Isolation on PCB between high and low voltage ter.
