SIM6812M, SIM6800M - High Voltage 3-Phase Motor Driver

Sanken

The SIM6812M by Sanken is a High Voltage 3-Phase Motor Driver. Below is the official datasheet preview.

📥 Download Datasheet

SIM6812M High Voltage 3-Phase Motor Driver by Sanken - Datasheet Preview — Official preview page of the **SIM6812M** High Voltage 3-Phase Motor Driver datasheet (Sanken).

Datasheet Details

Part number	SIM6812M, SIM6800M
Manufacturer	Sanken
File Size	1.54 MB
Description	High Voltage 3-Phase Motor Driver
Datasheet	SIM6800M-Sanken.pdf
Note	This datasheet PDF includes multiple part numbers: SIM6812M, SIM6800M. Please refer to the document for exact specifications by model.

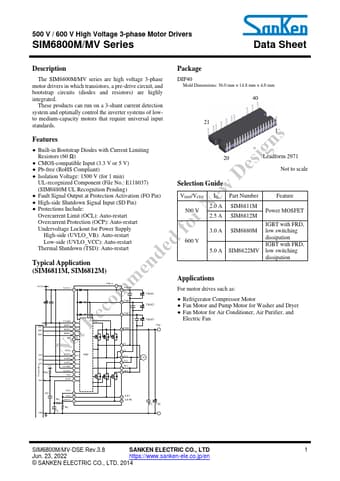

Additional preview pages of the SIM6812M datasheet.

SIM6812M Product details

Description

Package The SIM6800M/MV series are high voltage 3-phase DIP40 motor drivers in which transistors, a pre-drive circuit, and Mold Dimensions: 36.0 mm × 14.8 mm × 4.0 mm bootstrap circuits (diodes and resistors) are highly integrated.40 These products can run on a 3-shunt current detection system and optimally control the inverter systems of low- to medium-capacity motors that require universal input standards.

Features

Built-in Bootstrap Diodes with Current Limiting Resistors (60 Ω).
CMOS-compatible Input (3.3 V or 5 V).
Pb-free (RoHS Compliant).
Isolation Voltage: 1500 V (for 1 min) 21 20 1 igns Leadform 2971 Des Not to scale UL-recognized Component (File No. : E118037) (SIM6880M UL Recognition Pending) w.
Fault Signal Output at Protection Activation (FO Pin) e.
High-side Shutdown Signal Input (SD Pin) N.
Protections Include: Overcurrent Limit (OCL): Auto-restart r Overc.
