SIM6811M, SIM6800M - High Voltage 3-Phase Motor Driver

Sanken

The SIM6811M by Sanken is a High Voltage 3-Phase Motor Driver. Below is the official datasheet preview.

📥 Download Datasheet

SIM6811M High Voltage 3-Phase Motor Driver by Sanken - Datasheet Preview — Official preview page of the **SIM6811M** High Voltage 3-Phase Motor Driver datasheet (Sanken).

Datasheet Details

Part number	SIM6811M, SIM6800M
Manufacturer	Sanken
File Size	1.54 MB
Description	High Voltage 3-Phase Motor Driver
Datasheet	SIM6800M-Sanken.pdf
Note	This datasheet PDF includes multiple part numbers: SIM6811M, SIM6800M. Please refer to the document for exact specifications by model.

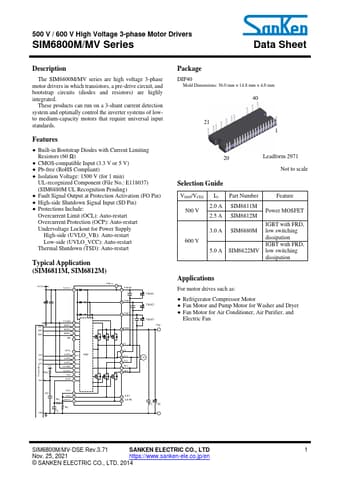

Additional preview pages of the SIM6811M datasheet.

SIM6811M Product details

Description

The SIM6800M/MV series are high voltage 3-phase motor drivers in which transistors, a pre-drive circuit, and bootstrap circuits (diodes and resistors) are highly integrated.

Features

Built-in Bootstrap Diodes with Current Limiting Resistors (60 Ω).
CMOS-compatible Input (3.3 V or 5 V).
Pb-free (RoHS Compliant).
Isolation Voltage: 1500 V (for 1 min) UL-recognized Component (File No. : E118037) (SIM6880M UL Recognition Pending).
Fault Signal Output at Protection Activation (FO Pin).
High-side Shutdown Signal Input (SD Pin).
Protections Include: Overcurrent Limit (OCL): Auto-restart Overcurrent Protection (OCP): Auto-restart Undervoltage Locko.
