FME-220A Datasheet (Sanken electric) - 100V 20A Schottky barrier diode

FME-220A, 100V 20A Schottky barrier diode

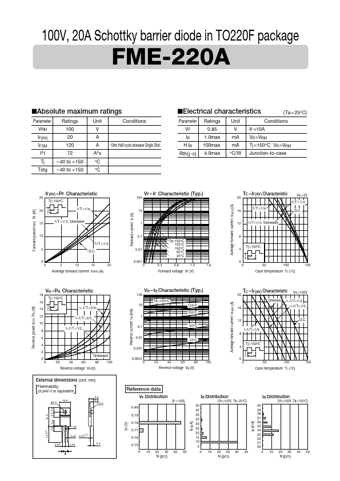

100V, 20A Schottky barrier diode in TO220F package FME-220A sAbsolute maximum ratings Parameter VRM IF(AV) IFSM I2 t Tj Tstg Ratings 100 20 120 72 40 to +150 40 to +150 Unit V A A A2 s °C °C 10ms Half-cycle sinewave Single Shot Conditions s Electrical characteristics Parameter VF IR H.IR Rth( j-c) Ratings 0.85 1.0max 100max 4.0max Unit V mA mA °C/W IF =10A VR =VRM (Ta = 25°C) Conditions Tj =150°C, VR =VRM Junction-to-case 25 IF(AV) PF Characteristic 100 Tj =150
