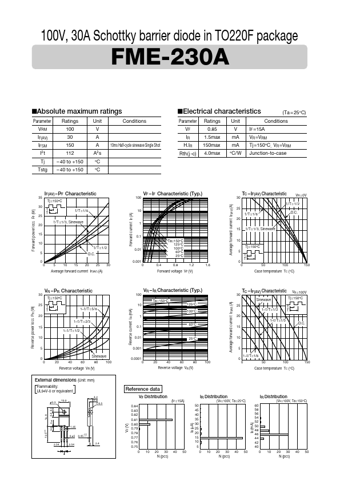

100V, 30A Schottky barrier diode in TO220F package
FME-230A
sAbsolute maximum ratings
Parameter VRM IF(AV) IFSM I2 t Tj Tstg Ratings 100 30 150 112 – 40 to +150 – 40 to +150 Unit V A A A2 s °C °C 10ms Half-cycle sinewave Single Shot Conditions
s Electrical characteristics
Parameter VF IR H.IR Rth( j-c) Ratings 0.85 1.5max 150max 4.0max Unit V mA mA °C/W IF =15A VR =VRM
(Ta = 25°C) Conditions
Tj =150°C, VR =VRM Junction-to-case
35 30 Forward power loss PF (W) 25 20 15 10
IF(AV) –PF Characteristic
100 Tj =150ºC t T
VF – IF Characteristic (Typ.)
30 Average forward current IF(AV) (A) 25
TC –IF(AV) Characteristic
VR =0V
t /T = 1/2 t /T = 1/6 20 15 10 Tj =150ºC 5 0 t T 0 50 100 150 Case temperature TC (°C) t /T = 1/ 3, Sinewave D.C.
FME-230A Datasheet
