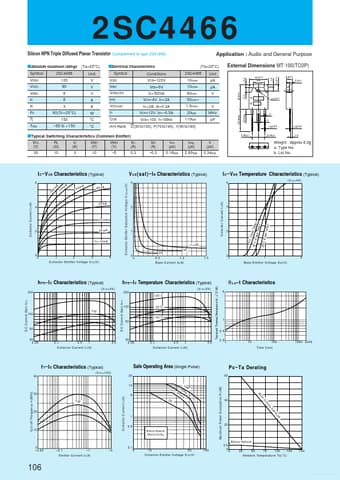

2SC4466 Silicon NPN Triple Diffused Planar Transistor (Complement to type 2SA1693) sAbsolute maximum ratings (Ta=25°C) Symbol VCBO VCEO VEBO IC IB PC Tj Tstg 2SC4466 120 80 6 6 3 60(Tc=25°C) 150 55 to +150 Unit V V V A A W °C °C Application : Audio and General Purpose (Ta=25°C) 2SC4466 10max 10max 80min 50min∗ 1.5max 20typ 110typ V pF 20.0min 4.0max sElectrical Characteristics Symbol ICBO IEBO V(BR)CEO hFE VCE(sat) fT COB ∗hFE Rank Conditions VCB=120V VEB=6V IC=50mA VCE=4V, IC=2A IC=2.
