C4401 2SC4401

C4401 Description

Ordering number:EN2754 NPN Epitaxial Planar Silicon Transistor 2SC4401 VHF/UHF Mixer, Local Oscillator, Low-Voltage Amplifier Applications Applicati.

C4401 Features

* Low-voltage operation : fT=3.0GHz typ (VCE=3V) : MAG=11dB typ (VCE=3V, IC=3mA) : NF=3.0dB typ (VCE=3V, IC=3mA)
* Very small-sized package permitting 2SC4401- applied sets to be made smaller and slimmer. 2.1 1.250 0.425 0.425 [2SC4401] 0.3 0.15 3 0.2 0~0.1 12 0.65 0.65 2.0 0.3 0.6 0

C4401 Applications

* Applications

📥 Download Datasheet

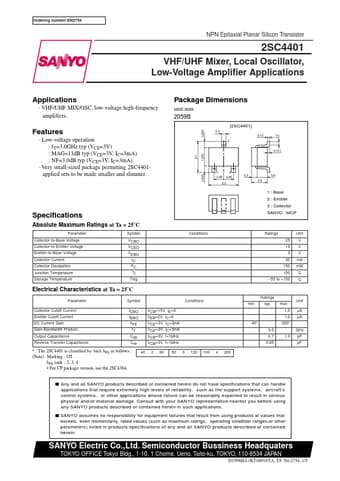

Preview of C4401 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C4401
Manufacturer
Sanyo
File Size
116.96 KB
Datasheet
C4401-Sanyo.pdf
Description
2SC4401
