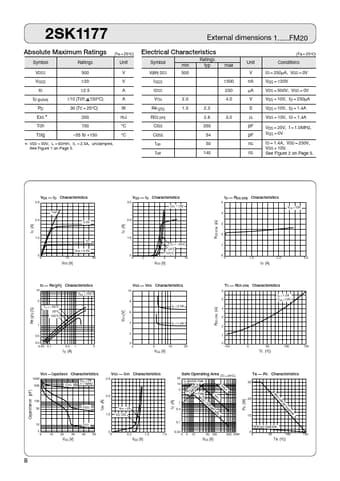

2SK1177
Absolute Maximum Ratings
Symbol VDSS VGSS ID ID (pulse) PD EAS * Tch Tstg Ratings 500 ± 20 ± 2.5 ± 10 (Tch 150ºC)
(Ta = 25ºC)
External dimensions 1......FM20
Electrical Characteristics
Symbol V(BR) DSS I GSS I DSS VTH Re (yfs) RDS (on) Ciss Coss t on t off 2.0 1.5 2.3 2.6 350 54 50 140 3.0 min 500 ± 500 250 4.0 Ratings typ max Unit V nA µA V S Ω pF pF ns ns
(Ta = 25ºC)
Unit V V A A W mJ ºC ºC
Conditions I D = 250µA, VGS = 0V VGS = ± 20V VDS = 500V, VGS = 0V VDS = 10V, I D = 250µA VDS = 10V, I D = 1.4A VGS = 10V, I D = 1.4A VDS = 25V, f = 1.0MHz, VGS = 0V I D = 1.4A, VDD = 250V, VGS = 10V, See Figure 2 on Page 5.
30 (Tc = 25ºC) 200 150 –55 to +150
unclamped,
VDD = 50V, L = 60mH, I L = 2.5A, *: See Figure 1 on Page 5.
VDS — I D Characteristics
3.0 10V 5.5V 3.
