S5MC - SURFACE MOUNT GLASS PASSIVATED RECTIFIER

Sangdest Microelectronics

📥 Download Datasheet

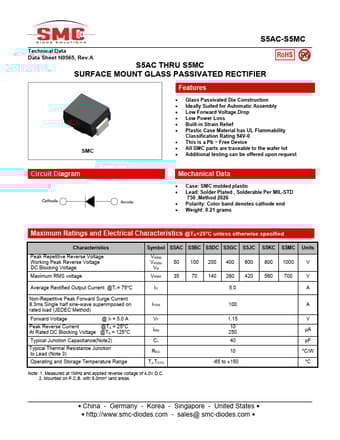

S5MC Datasheet Preview — Preview of S5MC PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	S5MC
Manufacturer	SangdeSTMicroelectronics
File Size	287.54 KB
Description	SURFACE MOUNT GLASS PASSIVATED RECTIFIER
Datasheet	S5MC-SangdestMicroelectronics.pdf

S5MC Product details

Features

SMC.
Glass Passivated Die Construction.
Ideally Suited for Automatic Assembly.
Low Forward Voltage Drop.
Low Power Loss.
Built-in Strain Relief.
Plastic Case Material has UL Flammability Classification Rating 94V-0.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Circuit Diagram Mechanical Data.
Case: SMC molded plastic.
Lead: Solder Plated , Solderable Per.
