S5MB - Standard Surface Mount Rectifier

Description

only.

No license, express or implied, to any intellectual property rights is granted by this document.

Features

  • Glass passivated chip junction.
  • Ideal for automated placement.
  • Low forward voltage drop.
  • High surge current capability.
  • Moisture sensitivity level: level 1, per J-STD-020.
  • RoHS Compliant.
  • Halogen-free according to IEC 61249-2-21.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
S5MBF Surface Mount Rectifiers GME
S5MBF SURFACE MOUNT RECTIFIER DIODES Sunmate
S5MBF Surface Mount General Purpose Silicon Rectifiers TOP DYNAMIC
S5MBF Surface Mount General Purpose Silicon Rectifiers Tinysemi
S5MBF Surface Mount General Purpose Silicon Rectifiers CTK

Other Datasheets by Taiwan Semiconductor

Part Number Description
S5M Surface Mount Rectifier

Full PDF Text Transcription

Click to expand full text

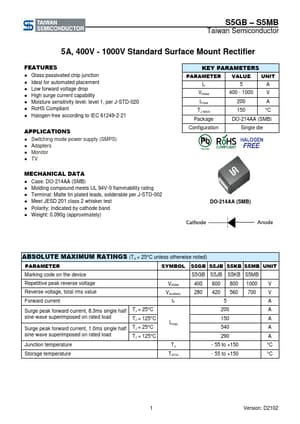

S5GB – S5MB Taiwan Semiconductor 5A, 400V - 1000V Standard Surface Mount Rectifier FEATURES ● Glass passivated chip junction ● Ideal for automated placement ● Low forward voltage drop ● High surge current capability ● Moisture sensitivity level: level 1, per J-STD-020 ● RoHS Compliant ● Halogen-free according to IEC 61249-2-21 APPLICATIONS ● Switching mode power supply (SMPS) ● Adapters ● Monitor ● TV KEY PARAMETERS PARAMETER VALUE UNIT IF VRRM 5 A 400 - 1000 V IFSM 200 A TJ MAX 150 °C Package DO-214AA (SMB) Configuration Single die MECHANICAL DATA ● Case: DO-214AA (SMB) ● Molding compound meets UL 94V-0 flammability rating ● Terminal: Matte tin plated leads, solderable per J-STD-002 ● Meet JESD 201 class 2 whisker test ● Polarity: Indicated by cathode band ● Weight: 0.
