DS120030G2 - SiC Schottky Barrier Diode

Product Overview

📥 Download Datasheet

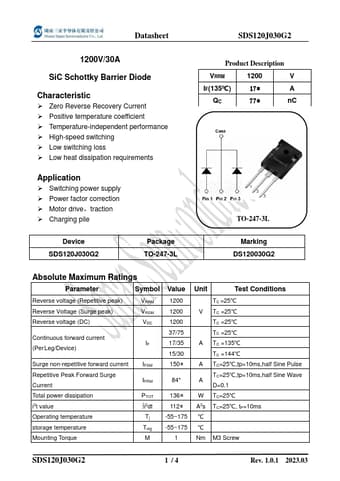

Datasheet preview – DS120030G2

Datasheet Details

Part number DS120030G2
Manufacturer Sanan
File Size 347.08 KB
Description SiC Schottky Barrier Diode
Datasheet download datasheet DS120030G2 Datasheet
Additional preview pages of the DS120030G2 datasheet.

Product details

Description

VRRM 1200 V IF(135℃) 17 A QC 77 nC TO-247-3L Device SDS120J030G2 Package TO-247-3L Marking DS120030G2 Absolute Maximum Ratings Parameter Symbol Value Unit Test Conditions Reverse voltage (Repetitive peak) Reverse Voltage (Surge peak) Reverse voltage (DC) Continuous forward current (Per Leg/Device) Surge non-repetitive forward current Repetitive Peak Forward Surge Current Total power dissipation i2t value Operating temperature storage temperature Mounting Torque VRRM
