DS065020H3 - SiC Schottky Barrier Diode

Product Overview

📥 Download Datasheet

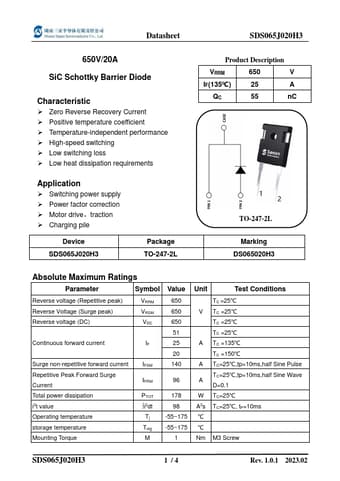

Datasheet preview – DS065020H3

Datasheet Details

Part number DS065020H3
Manufacturer Sanan
File Size 288.32 KB
Description SiC Schottky Barrier Diode
Datasheet download datasheet DS065020H3 Datasheet
Additional preview pages of the DS065020H3 datasheet.

Product details

Description

VRRM 650 V IF(135℃) 25 A QC 55 nC TO-247-2L Marking DS065020H3 Absolute Maximum Ratings Parameter Symbol Value Unit Test Conditions Reverse voltage (Repetitive peak) VRRM 650 TC =25℃ Reverse Voltage (Surge peak) VRSM 650 V TC =25℃ Reverse voltage (DC) VDC 650 TC =25℃ 51 TC =25℃ Continuous forward current IF 25 A TC =135℃ 20 TC =150℃ Surge non-repetitive forward current IFSM 140 A TC=25℃,tp=10ms,half Sine Pulse Repetitive Peak Forward Surge Current TC=25℃,tp
