LTY320HQ01 - TFT LCD

Samsung

📥 Download Datasheet

LTY320HQ01 Datasheet Preview — Preview of LTY320HQ01 PDF

Datasheet Details

Part number	LTY320HQ01
Manufacturer	Samsung
File Size	957.07 KB
Description	TFT LCD
Datasheet	LTY320HQ01-Samsung.pdf

LTY320HQ01 Product details

Description

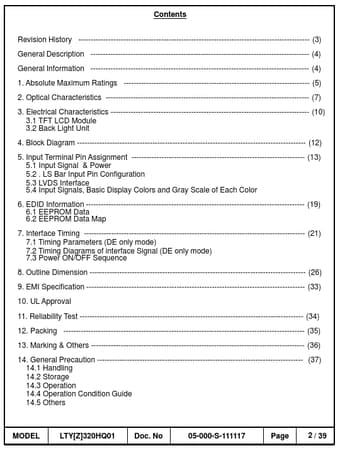

--------------------------------------------------------------------------------------- (4) General Information --------------------------------------------------------------------------------------- (4) 1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5) 2. Optical Characteristics --------------------------------------------------------------------------------- (7) 3. Electrical Characteristics ----------------------------------------------

Features

RoHS compliance (Pb-free).
High contrast ratio, high aperture ratio, fast response time.
SPVA (Super Patterned Vertical Align) mode.
Wide viewing angle (±89°).
Full HD (1920 x 1080 pixels) resolution (16:9).
Low Power consumption.
WLED (White Light Emitting Diode) Backlight.
LVDS (Low Voltage Differential Signaling) interface General Information Items Module Size Weight Pixel Pitch Active Display Area Surface Treatment Display Colors Number of Pixels Pix.
