LTY320AN02 - TFT LCD

Samsung

📥 Download Datasheet

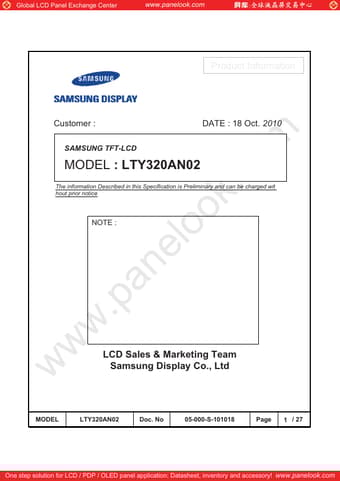

LTY320AN02 Datasheet Preview — Preview of LTY320AN02 PDF

Datasheet Details

Part number	LTY320AN02
Manufacturer	Samsung
File Size	874.97 KB
Description	TFT LCD
Datasheet	LTY320AN02-Samsung.pdf

LTY320AN02 Product details

Description

--------------------------------------------------------------------------------------- (4) General Information --------------------------------------------------------------------------------------- (4) 1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5) 2. Optical Characteristics --------------------------------------------------------------------------------- (7) 3. Electrical Characteristics ----------------------------------------------

Features

RoHS compliance (Pb-free).
High contrast ratio, high aperture ratio, fast response time.
PVA mode.
Wide viewing angle (±89°).
WXGA (1366 x 768 pixels) resolution (16:9).
Low Power consumption.
84EA LED.
LVDS (Low Voltage Differential Signaling) interface General Information Items Module Size Weight Pixel Pitch Active Display Area Surface Treatment Display Colors Number of Pixels Pixel Arrangement Display Mode Luminance of White Specification 733.6(HTYP).
