K4J55323QF-GC, K4J 256Mbit GDDR3 SDRAM

Samsung

K4J55323QF-GC Description

K4J55323QF-GC 256M GDDR3 SDRAM 256Mbit GDDR3 SDRAM 2M x 32Bit x 4 Banks Graphic Double Data Rate 3 Synchronous DRAM with Uni-directional Data Strobe.
FOR 2M x 32Bit x 4 Bank GDDR3 SDRAM The 8Mx32 GDDR3 is 268,435,456 bits of hyper synchronous data rate Dynamic RAM organized as 4 x 2,097,152 words by.

K4J55323QF-GC Features

* 2.0V + 0.1V power supply for device operation
* 2.0V + 0.1V power supply for I/O interface
* On-Die Termination (ODT)
* Output Driver Strength adjustment by EMRS
* Calibrated output drive
* Pseudo Open drain compatible inputs/outputs
* 4 inte

K4J55323QF-GC Applications

* - 4 - Rev 1.7 (Jan. 2005) K4J55323QF-GC PIN CONFIGURATION Normal Package (Top View) 2 3 4 VSSQ VDDQ VSSQ VDD VDDQ VDDQ VDDQ VDDQ VDDQ VDD A10 A11 256M GDDR3 SDRAM 5 DQ3 VDDQ VSSQ VSS VSSQ VSSQ VSSQ VSSQ VSSQ VSS /RAS BA0 6 DQ2 DQ1 VSSQ VSSQ NC, VSS NC, VSS NC, VSS NC, VSS VSS RFU2 RESET /CAS

📥 Download Datasheet

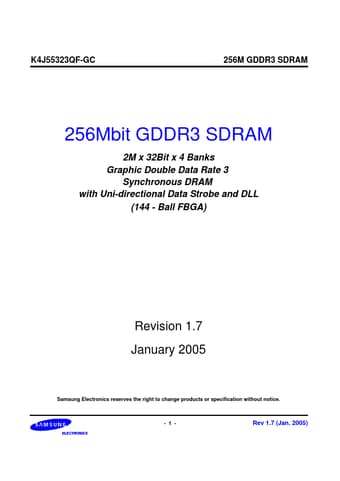

K4J55323QF-GC Datasheet Preview — This datasheet PDF includes multiple part numbers: K4J55323QF-GC, K4J. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: K4J55323QF-GC, K4J
Manufacturer: Samsung
File Size: 1.00 MB
Datasheet: K4J-553.pdf
Description: 256Mbit GDDR3 SDRAM
Note: This datasheet PDF includes multiple part numbers: K4J55323QF-GC, K4J.
Please refer to the document for exact specifications by model.
