K5A3380YTC-T755 - MCP MEMORY

Product Overview

Samsung semiconductor

Part number	K5A3380YTC-T755
Manufacturer	Samsung semiconductor
File Size	625.28 KB
Description	MCP MEMORY
Datasheet	K5A3380YTC-T755 Datasheet
Note	This datasheet PDF includes multiple part numbers: K5A3380YTC-T755, K5A. Please refer to the document for exact specifications by model.

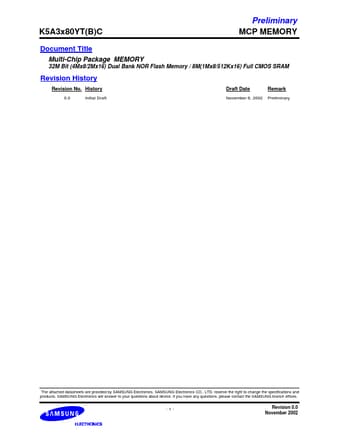

Additional preview pages of the K5A3380YTC-T755 datasheet.

The K5A3x80YT(B)C featuring single 3.0V power supply is a Multi Chip Package Memory which combines 32Mbit Dual Bank Flash and 8Mbit fCMOS SRAM.

Power Supply voltage : 2.7V to 3.3V.
Organization - Flash : 4,194,304 x 8 / 2,097,152 x 16 bit - SRAM : 1,048,576 x 8 / 524,288 x 16 bit.
Access Time (@2.7V) - Flash : 70 ns, SRAM : 55 ns.
Power Consumption (typical value) - Flash Read Current : 14 mA (@5MHz) Program/Erase Current : 15 mA Standby mode/Autosleep mode : 5 µA Read while Program or Read while Erase : 25 mA - SRAM Operating Current : 22 mA Standby Current : 0.5 µA.
Secode(Security Code) B.
