K5A3380YTC-T855 - MCP MEMORY

Download the K5A3380YTC-T855 datasheet PDF. This datasheet also covers the K5A variant, as both devices belong to the same mcp memory family and are provided as variant models within a single manufacturer datasheet.

Description

The K5A3x80YT(B)C featuring single 3.0V power supply is a Multi Chip Package Memory which combines 32Mbit Dual Bank Flash and 8Mbit fCMOS SRAM.

The 32Mbit Flash memory is organized as 4M x8 or 2M x16 bit and 8Mbit SRAM is organized as 1M x8 or 512K x16 bit.

Features

  • Power Supply voltage : 2.7V to 3.3V.
  • Organization - Flash : 4,194,304 x 8 / 2,097,152 x 16 bit - SRAM : 1,048,576 x 8 / 524,288 x 16 bit.
  • Access Time (@2.7V) - Flash : 70 ns, SRAM : 55 ns.
  • Power Consumption (typical value) - Flash Read Current : 14 mA (@5MHz) Program/Erase Current : 15 mA Standby mode/Autosleep mode : 5 µA Read while Program or Read while Erase : 25 mA - SRAM Operating Current : 22 mA Standby Current : 0.5 µA.
  • Secode(Security Code) B.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (K5A-3380.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
K5A2 Snap Action Key Switch Switch ITT Industries
K5A50D TK5A50D Toshiba Semiconductor
K5A53D N-Channel 650V Power MOSFET VBsemi
K5A60D TK5A60D Toshiba
K5A60D N-Channel 650V Power MOSFET VBsemi

Other Datasheets by Samsung Semiconductor

Part Number Description
K5A3380YTC-T755 MCP MEMORY
K5A3380YBC-T755 MCP MEMORY
K5A3380YBC-T855 MCP MEMORY
K5A3340YBC-T755 Multi-Chip Package MEMORY 32M Bit (4Mx8/2Mx16) Dual Bank NOR Flash Memory / 4M(512Kx8/256Kx16) Full CMOS SRAM
K5A3340YBC-T855 Multi-Chip Package MEMORY 32M Bit (4Mx8/2Mx16) Dual Bank NOR Flash Memory / 4M(512Kx8/256Kx16) Full CMOS SRAM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

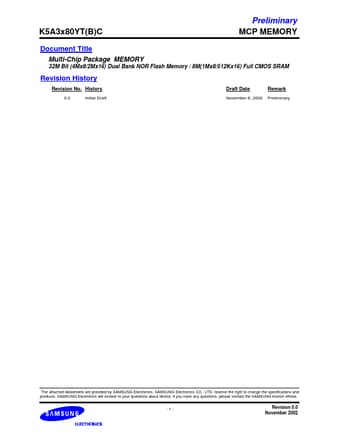

K5A3x80YT(B)C Document Title Multi-Chip Package MEMORY Preliminary MCP MEMORY 32M Bit (4Mx8/2Mx16) Dual Bank NOR Flash Memory / 8M(1Mx8/512Kx16) Full CMOS SRAM Revision History Revision No. History 0.0 Initial Draft Draft Date November 6, 2002 Remark Preliminary The attached datasheets are provided by SAMSUNG Electronics. SAMSUNG Electronics CO., LTD. reserve the right to change the specifications and products. SAMSUNG Electronics will answer to your questions about device. If you have any questions, please contact the SAMSUNG branch offices. -1- Revision 0.0 November 2002 K5A3x80YT(B)C Multi-Chip Package MEMORY Preliminary MCP MEMORY 32M Bit (4Mx8/2Mx16) Dual Bank NOR Flash Memory / 8M(1Mx8/512Kx16) Full CMOS SRAM FEATURES • Power Supply voltage : 2.7V to 3.
