K4S281632F-UC60, K4S281632F-Uxx 128Mb F-die SDRAM

Samsung semiconductor

Description

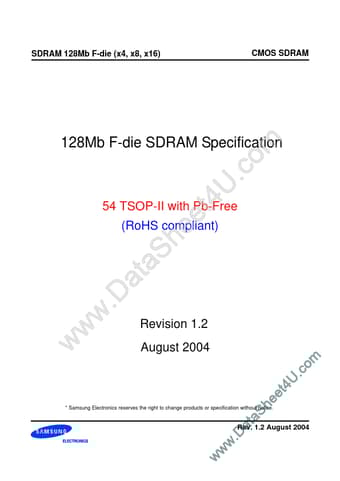

SDRAM 128Mb F-die (x4, x8, x16) CMOS SDRAM 128Mb F-die SDRAM Specification t4U.com54 TSOP-II with Pb-Free e(RoHS compliant) w.DataSheRevision 1.2 ww.
The K4S280432F / K4S280832F / K4S281632F is 134,217,728 bits synchronous high data rate Dynamic RAM organized as 4 x 8,388,608 words by 4 bits / 4 x 4.

📥 Download Datasheet

K4S281632F-UC60 Datasheet Preview — This datasheet PDF includes multiple part numbers: K4S281632F-UC60, K4S281632F-Uxx. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: K4S281632F-UC60, K4S281632F-Uxx
Manufacturer: Samsung semiconductor
File Size: 174.13 KB
Datasheet: K4S281632F-Uxx_Samsungsemiconductor.pdf
Description: 128Mb F-die SDRAM
Note: This datasheet PDF includes multiple part numbers: K4S281632F-UC60, K4S281632F-Uxx.
Please refer to the document for exact specifications by model.

Features

* JEDEC standard 3.3V power supply
* LVTTL compatible with multiplexed address
* Four banks operation
* MRS cycle with address key programs -. CAS latency (2 & 3) -. Burst length (1, 2, 4, 8 & Full page) -. Burst type (Sequential & Interleave)
* All inputs are

Applications

* Ordering Information Part No. K4S280432F-UC(L)75 K4S280832F-UC(L)75 K4S281632F-UC(L)60/75 Orgainization 32M x 4 16M x 8 8M x 16 Max Freq. 133MHz 133MHz 166MHz Interface LVTTL LVTTL LVTTL Package 54pin TSOP(II) 54pin TSOP(II) 54pin TSOP(II) Organization 32Mx4 16Mx8 8Mx16 Row Address A0~A11 A0
