KM732V688, 64Kx32-Bit Synchronous Pipelined Burst SRAM

The KM732V688/L is a 2,097,152 bit Synchronous Static Random Access Memory designed for high performance second level cache of Pentium and Power PC based System.

It is organized as 64K words of 32 bits and integrates address and control registers, a 2-bit burst address counter and added some new fun

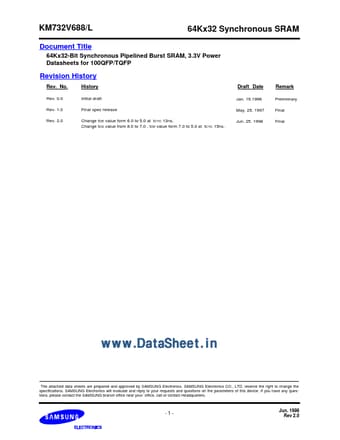

PRELIMINARY KM732V688/L Document Title 64Kx32-Bit Synchronous Pipelined Burst SRAM, 3.3V Power Datasheets for 100QFP/TQFP 64Kx32 Synchronous SRAM Revision History Rev.

No.

Rev.

0.0 Rev.

1.0 Rev.

2.0 History Initial draft Final spec release Change tOE value form 6.0 to 5.0 at tCYC 13ns.

Change tCD value from 8.0 to 7.0 , tOE value form 7.0 to 5.0 at tCYC 15ns.

Draft Date Jan.

19.1996 May.

25.

1997 Jun.

25.

1998 Remark Preliminary Final Final The attached data sheets are prepared and approve

KM732V688 Features

* Synchronous Operation. 2 Stage Pipelined operation with 4 Burst. On-Chip Address Counter. Self-Timed Write Cycle. On-Chi
