KM732V589A_SamsungSemiconductor.pdf
Datasheet Details
Part number:
KM732V589L, KM732V589A
Manufacturer:
Samsung Semiconductor
File Size:
448.36 KB
Description:
32kx32-bit synchronous pipelined burst sram.
Note:
This datasheet PDF includes multiple part numbers: KM732V589L, KM732V589A.
Please refer to the document for exact specifications by model.
The KM732V589A/L is a 1,048,576-bit Synchronous Static Random Access Memory designed for high performance second level cache of Pentium and Power PC based System.
It is organized as 32K words of 32bits and integrates address and control registers, a 2-bit burst address counter and added some new fun

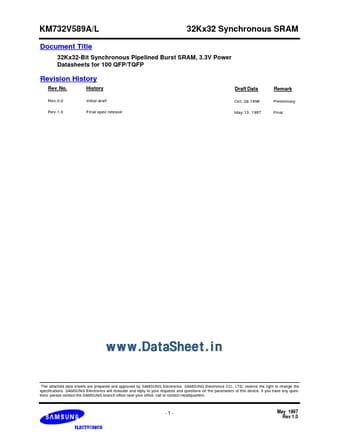

PRELIMINARY KM732V589A/L Document Title 32Kx32-Bit Synchronous Pipelined Burst SRAM, 3.3V Power Datasheets for 100 QFP/TQFP 32Kx32 Synchronous SRAM Revision History Rev.
No.
Rev.0.0 Rev.1.0 History Initial draft Final spec release Draft Data Oct.
28.1996 May.13.
1997 Remark Preliminary Final The attached data sheets are prepared and approved by SAMSUNG Electronics.
SAMSUNG Electronics CO., LTD.
reserve the right to change the specifications.
SAMSUNG Electronics will evaluate and reply to y
KM732V589L Features
* Synchronous Operation. 2 Stage Pipelined operation with 4 Burst. On-Chip Address Counter. Self-Timed Write Cycle. On-Chip Address
