KM732V596A, 32Kx32-Bit Synchronous Pipelined Burst SRAM

The KM732V596A/L is a 1,048,576 bit Synchronous Static Random Access Memory designed for high performance second level cache of Pentium and Power PC based Mobile System.

It is organized as 32K words of 32 bits and integrates address and control registers, a 2-bit burst address counter and added some

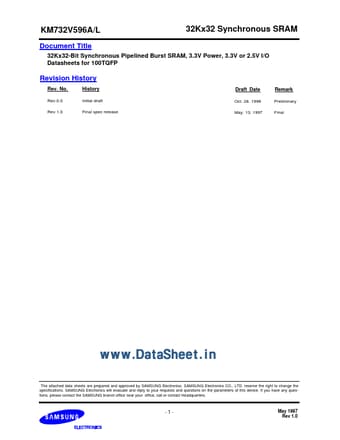

PRELIMINARY KM732V596A/L Document Title 32Kx32-Bit Synchronous Pipelined Burst SRAM, 3.3V Power, 3.3V or 2.5V I/O Datasheets for 100TQFP 32Kx32 Synchronous SRAM Revision History Rev.

No.

Rev.0.0 Rev 1.0 History Initial draft Final spec release Draft Date Oct.

28.

1996 May.

13.

1997 Remark Preliminary Final The attached data sheets are prepared and approved by SAMSUNG Electronics.

SAMSUNG Electronics CO., LTD.

reserve the right to change the specifications.

SAMSUNG Electronics will evaluate

KM732V596A Features

* Synchronous Operation. 2 Stage Pipelined operation with 4 Burst. On-Chip Address Counter. Write Self-Timed Cycle. On-Chi
