STU612D Dual Enhancement Mode Field Effect Transistor

Green Product STU612D Ver 1.0 S a mHop Microelectronics C orp. Dual Enhancement Mode Field Effect Transistor (N and P Channel) PRODUCT SUMMARY (N-Channel) V DSS 60V PRODUCT SUMMARY (P-Channel) V DSS -60V ID 8.6A R DS(ON) (m Ω) Max 76 @ VGS=10V ID -7.3A R DS(ON) (m Ω) Max 110 @ VGS=-10V 145 @ VGS=-4.5V 90 @ VGS=4.5V D1/D2 G1 D1 D2 G2 S1 G1 S2 G2 TO-252-4L S1 N-ch S2 P -ch ABSOLUTE MAXIMUM RATINGS ( T C=25 °C unless otherwise noted ) Symbol VDS VGS ID IDM EAS PD TJ, TSTG Paramet.

STU612D Datasheet (270.41 KB)

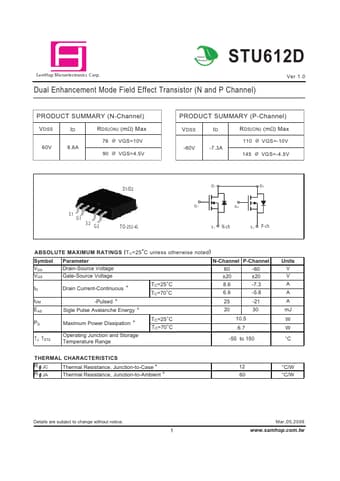

STU612D Datasheet Preview — Preview of STU612D PDF

Datasheet Details

Part number:

STU612D

Manufacturer:

SamHop

File Size:

270.41 KB

Description:

Dual enhancement mode field effect transistor.
