DB107S - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

Product Overview

Part number	DB107S
Manufacturer	STS
File Size	782.62 KB
Description	GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
Datasheet	DB107S Datasheet
Note	This datasheet PDF includes multiple part numbers: DB107S, DB1005S. Please refer to the document for exact specifications by model.

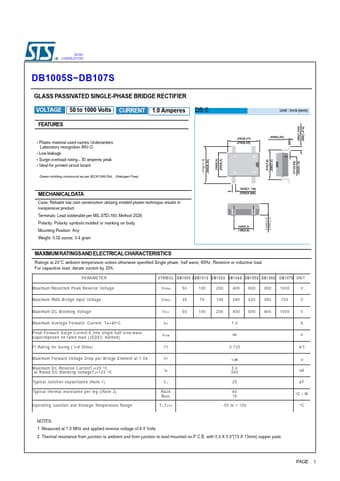

Additional preview pages of the DB107S datasheet.

Plastic material used carries Underwriters Laboratory recognition 94V-O.
Low leakage.
Surge overload rating-- 30 amperes peak.
Ideal for printed circuit board Green molding compound as per IEC61249 Std. . (Halogen Free) 406 10.3 0.098(2.5) 0.086(2.2).
