DB107-G - Glass Passivated Bridge Rectifiers

Download the DB107-G datasheet PDF. This datasheet also covers the DB101-G variant, as both devices belong to the same glass passivated bridge rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • -Rating to 1000V PRV. -Ideal for printed circuit board. -Low forward voltage drop. -High current capability. -The plastic material has UL flammability classification 94V-0 -UL recognized file # E349301 R Mechanical Data -Polarity: As marked on Body. -Weight: 0.38 grams. -Mounting position: Any. DB -+ 0.335(8.50) 0.307(7.80) 0.256(6.50) 0.244(6.20) ~~ 0.350(8.90) 0.300(7.60) 0.059(1.50) 0.193(4.90) 0.155(3.90) 0.346(8.80) 0.323(8.20) 0.134(3.40) 0.124(3.15) 0.205(5.20) 0.197(5.00) 0.022.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DB101-G-Comchip.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DB107-G
Manufacturer Comchip
File Size 59.93 KB
Description Glass Passivated Bridge Rectifiers
Datasheet download datasheet DB107-G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DB107 SILICON BRIDGE RECTIFIER LRC
DB107 SINGLE PHASE 1.0AMP GLASS PASSIVATED BRIDGERECTIFIER SMC Diode
DB107 SILICON BRIDGE RECTIFIER Rectron
DB107 1A Single Phase Bridge Rectifier MCC
DB107 SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER Kingtronics

Other Datasheets by Comchip

Part Number Description
DB107S-G SMD Glass Passivated Bridge Rectifiers
DB101-G Glass Passivated Bridge Rectifiers
DB101S-G SMD Glass Passivated Bridge Rectifiers
DB102-G Glass Passivated Bridge Rectifiers
DB102S-G SMD Glass Passivated Bridge Rectifiers

Full PDF Text Transcription

Click to expand full text

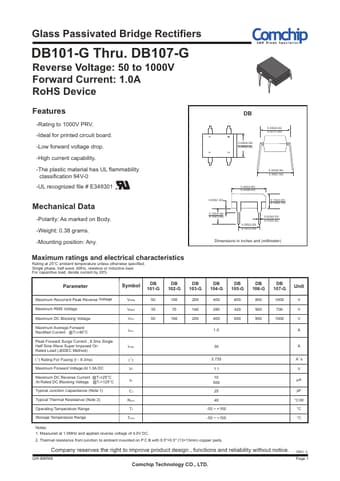

Glass Passivated Bridge Rectifiers DB101-G Thru. DB107-G Reverse Voltage: 50 to 1000V Forward Current: 1.0A RoHS Device Features -Rating to 1000V PRV. -Ideal for printed circuit board. -Low forward voltage drop. -High current capability. -The plastic material has UL flammability classification 94V-0 -UL recognized file # E349301 R Mechanical Data -Polarity: As marked on Body. -Weight: 0.38 grams. -Mounting position: Any. DB -+ 0.335(8.50) 0.307(7.80) 0.256(6.50) 0.244(6.20) ~~ 0.350(8.90) 0.300(7.60) 0.059(1.50) 0.193(4.90) 0.155(3.90) 0.346(8.80) 0.323(8.20) 0.134(3.40) 0.124(3.15) 0.205(5.20) 0.197(5.00) 0.022(0.55) 0.018(0.45) Dimensions in inches and (millimeter) Maximum ratings and electrical characteristics Rating at 25°C ambient temperature unless otherwise specified.
