VNV20N07 FULLY AUTOPROTECTED POWER MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

VNP20N07FI ® VNB20N07/VNV20N07 "OMNIFET": FULLY AUTOPROTECTED POWER MOSFET TYPE VNP20N07FI VNB20N07 VNV20N07 Vclamp 70 V 70 V 70 V RDS(on) 0.05 .
The VNP20N07FI, VNB20N07 and VNV20N07 are monolithic devices made using STMicroelectronics VlPower M0 Technology, intended for replacement of standard.

📥 Download Datasheet

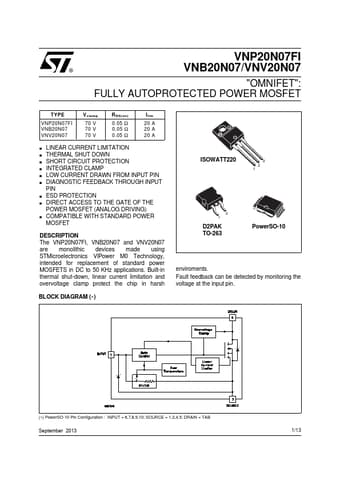

Preview of VNV20N07 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* During normal operation, the Input pin is electrically connected to the gate of the internal power MOSFET. The device then behaves like a standard power MOSFET and can be used as a switch from DC to 50 KHz. The only difference from the user’s standpoint is that a small DC current (Iiss) flows into t

Applications

* Built-in thermal shut-down, linear current limitation and overvoltage clamp protect the chip in harsh BLOCK DIAGRAM (∗) ISOWATT220 3 2 1 3 1 D2PAK TO-263 10 1 PowerSO-10 enviroments. Fault feedback can be detected by monitoring the voltage at the input pin. (∗) PowerSO-10 Pin Configuration :
