VNQ9025AJ Quad channel high-side driver

VNQ9025AJ Description

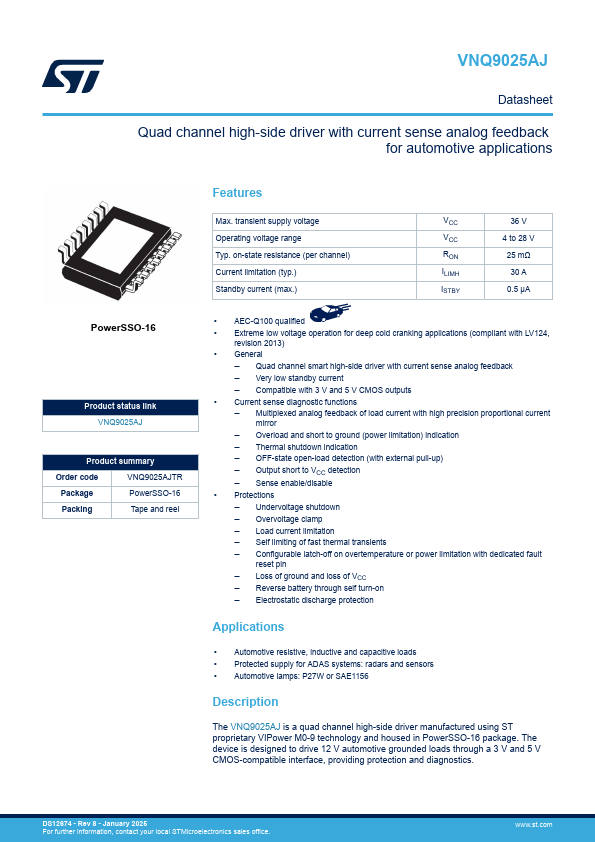

VNQ9025AJ Datasheet Quad channel high-side driver with current sense analog feedback for automotive applications PowerSSO-16 Product status link VNQ.

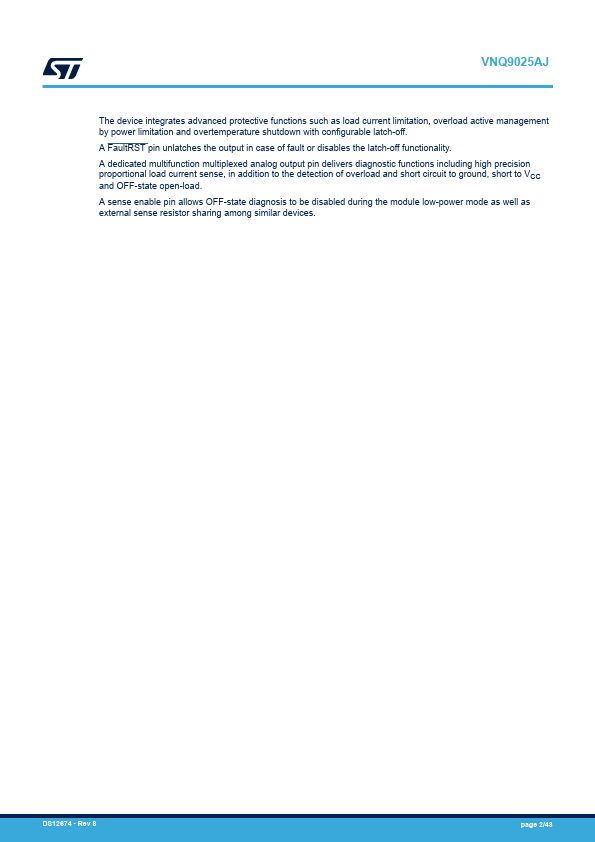

The VNQ9025AJ is a quad channel high-side driver manufactured using ST proprietary VIPower M0-9 technology and housed in PowerSSO-16 package.

VNQ9025AJ Features

* Max. transient supply voltage Operating voltage range Typ. on-state resistance (per channel) Current limitation (typ. ) Standby current (max. ) VCC VCC RON ILIMH ISTBY 36 V 4 to 28 V 25 mΩ 30 A 0.5 µA
* AEC-Q100 qualified
* Extreme low voltage operation for deep cold cranking applic
