ULN2003A - SEVEN DARLINGTON ARRAYS

Name: ULN2003A
SKU: ULN2003A-366764

STMicroelectronics

📥 Download Datasheet

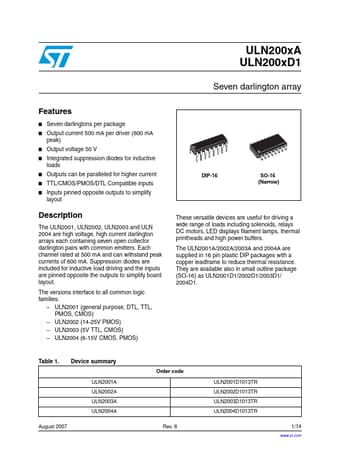

ULN2003A Datasheet Preview — Preview of ULN2003A PDF

Datasheet Details

Part number	ULN2003A
Manufacturer	STMicroelectronics
File Size	568.49 KB
Description	SEVEN DARLINGTON ARRAYS
Datasheet	ULN2003A_STMicroelectronics.pdf

ULN2003A Product details

Description

The ULN2001, ULN2002, ULN2003 and ULN 2004 are high voltage, high current darlington arrays each containing seven open collector darlington pairs with common emitters. ULN2001 (general purpose, DTL, TTL, PMOS, CMOS) ULN2002

Features

Seven darlingtons per package.
Output current 500 mA per driver (600 mA peak).
Output voltage 50 V.
Integrated suppression diodes for inductive loads.
Outputs can be paralleled for higher current.
TTL/CMOS/PMOS/DTL Compatible inputs.
Inputs pinned opposite outputs to simplify layout.
