ULN2002, ULN2001 - SEVEN DARLINGTON ARRAYS

Name: ULN2002
SKU: ULN2002-909511

STMicroelectronics

📥 Download Datasheet

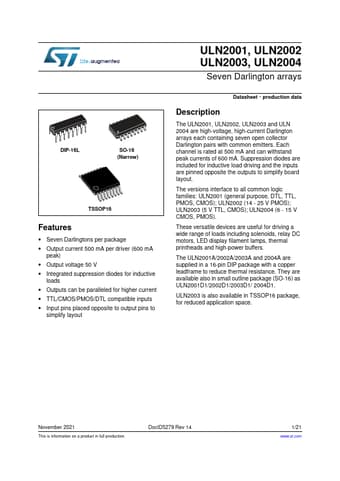

ULN2002 Datasheet Preview — This datasheet PDF includes multiple part numbers: ULN2002, ULN2001. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	ULN2002, ULN2001
Manufacturer	STMicroelectronics
File Size	826.06 KB
Description	SEVEN DARLINGTON ARRAYS
Datasheet	ULN2001_STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: ULN2002, ULN2001. Please refer to the document for exact specifications by model.

ULN2002 Product details

Description

The ULN2001, ULN2002, ULN2003 and ULN 2004 are high-voltage, high-current Darlington arrays each containing seven open collector Darlington pairs with common emitters.

Features

Seven Darlingtons per package.
Output current 500 mA per driver (600 mA peak).
Output voltage 50 V.
Integrated suppression diodes for inductive loads.
Outputs can be paralleled for higher current.
TTL/CMOS/PMOS/DTL compatible inputs.
Input pins placed opposite to output pins to simplify layout ULN2001, ULN2002 ULN2003, ULN2004 Seven Darlington arrays Datasheet - production data.
