TSU112IY, TSU111IY CMOS operational amplifier

TSU112IY Description

TSU111IY, TSU112IY Datasheet Automotive grade, nanopower (920 nA), high accuracy (150 μV) 5 V CMOS operational amplifier .
The TSU111IY and TSU112IY operational amplifiers (op-amp) offer an ultra lowpower consumption per channel of 920 nA typical and 1.

TSU112IY Features

* Product status link TSU111IY, TSU112IY Related products See TSU101, TSU102 and For further power savings TSU104 See TSZ121, TSZ122 and For increased accuracy TSZ124
* AEC-Q100 qualified for Y version
* Sub-micro ampere current consumption: Icc = 920 nA typ. at 25 °C
* Low o

TSU112IY Applications

* Battery management system: ultra-low power op-amp detects when battery is charging/discharging and wakes up CPU
* On-board chargers
* Signal conditioning for energy harvesting

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TSU112IY, TSU111IY. Please refer to the document for exact specifications by model.

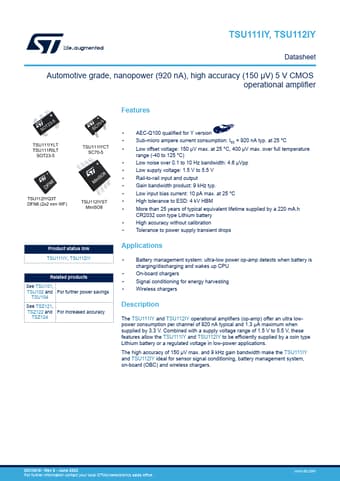

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TSU112IY, TSU111IY
Manufacturer
STMicroelectronics ↗
File Size
2.37 MB
Datasheet
TSU111IY-STMicroelectronics.pdf
Description
CMOS operational amplifier
Note
This datasheet PDF includes multiple part numbers: TSU112IY, TSU111IY.
Please refer to the document for exact specifications by model.
