TSC215, TSC210 zero-drift current sense amplifier

TSC215 Description

TSC210, TSC211, TSC212 TSC213, TSC214, TSC215 Datasheet High/low-side, bidirectional, zero-drift current sense amplifiers Maturity status link TSC210.
The TSC210, TSC211, TSC212, TSC213, TSC214 and TSC215 are a series of zerodrift current sense amplifiers that can sense current via a shunt resistor o.

TSC215 Features

* Wide common mode voltage: -0.3 to 26 V
* Offset voltage: ±35 µV max. (TSC210)
* 2.7 to 26 V supply voltage
* Different gain available
* TSC210 (200 V/V)
* TSC211 (500 V/V)
* TSC212 (1000 V/V)
* TSC213 (50 V/V)
* TSC2

TSC215 Applications

* Telecom equipment
* Power management
* Notebook computers
* Industrial applications

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TSC215, TSC210. Please refer to the document for exact specifications by model.

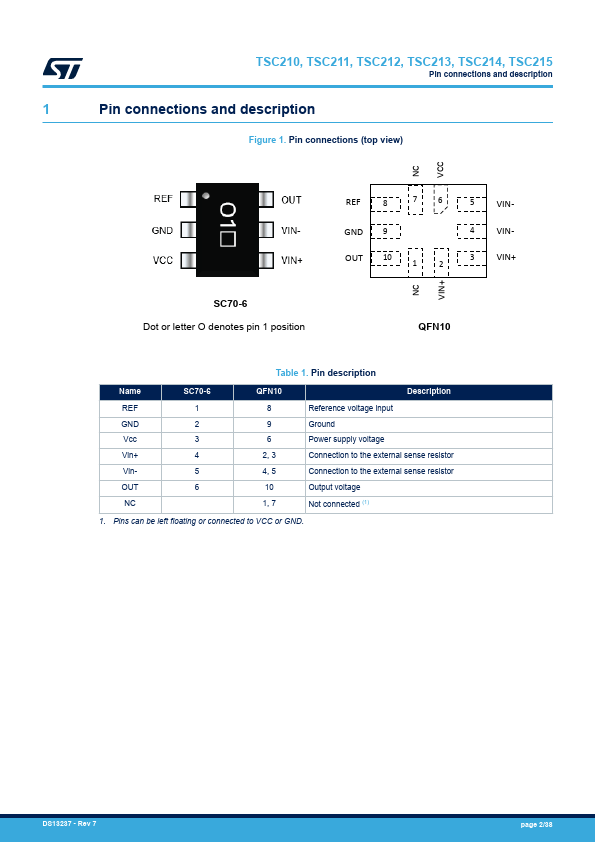

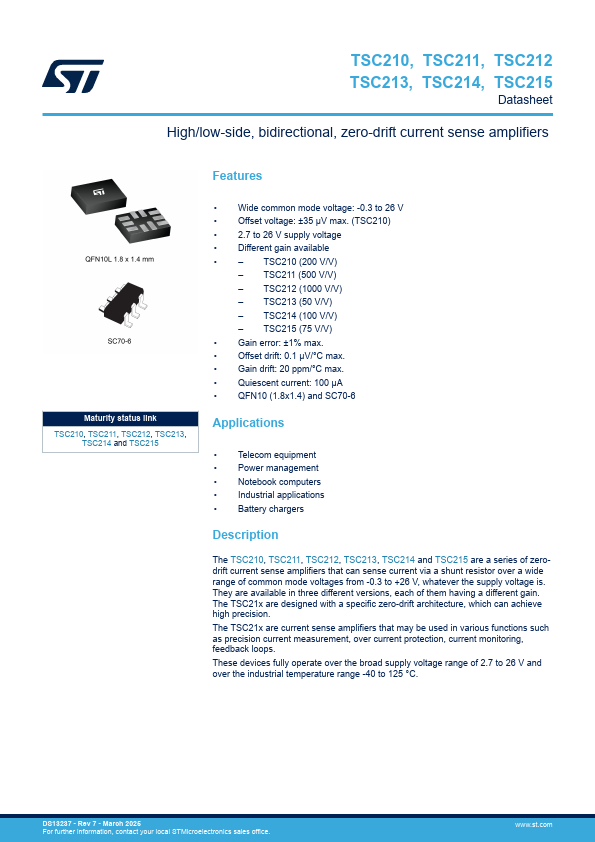

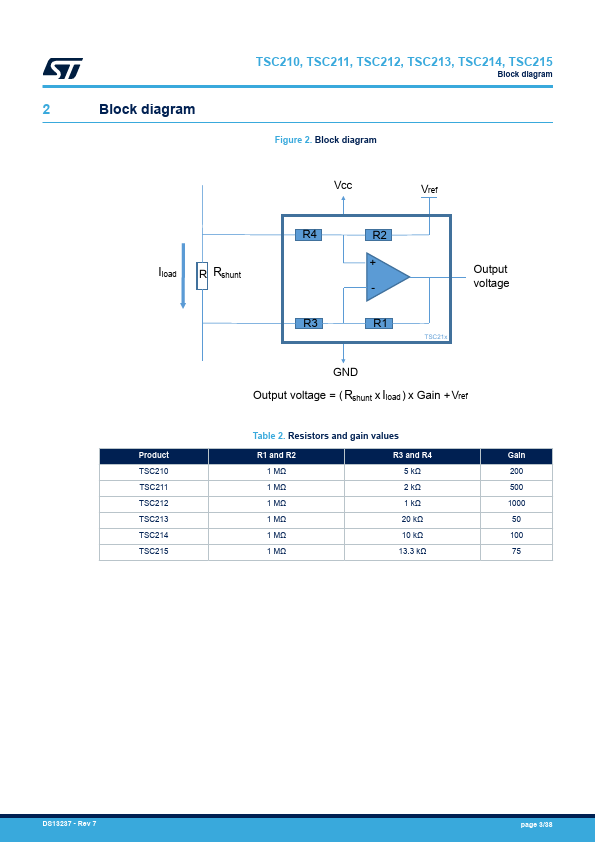

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TSC215, TSC210
Manufacturer
STMicroelectronics ↗
File Size
1.70 MB
Datasheet
TSC210-STMicroelectronics.pdf
Description
zero-drift current sense amplifier
Note
This datasheet PDF includes multiple part numbers: TSC215, TSC210.
Please refer to the document for exact specifications by model.
