TSC2021, TSC2020 bidirectional current sense amplifier

TSC2021 Description

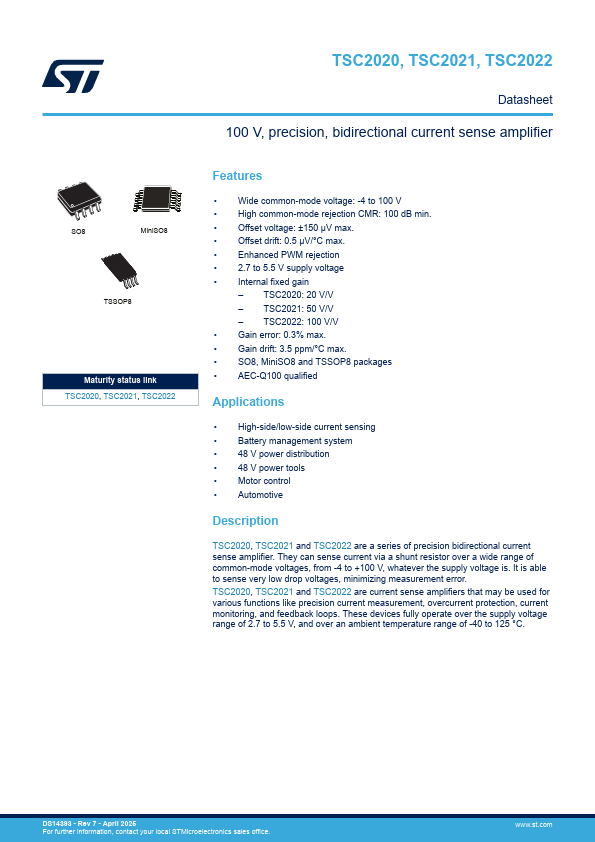

SO8 MiniSO8 TSSOP8 Maturity status link TSC2020, TSC2021, TSC2022 TSC2020, TSC2021, TSC2022 Datasheet 100 V, precision, bidirectional current sens.
TSC2020, TSC2021 and TSC2022 are a series of precision bidirectional current sense amplifier.

TSC2021 Features

* Wide common-mode voltage: -4 to 100 V
* High common-mode rejection CMR: 100 dB min.
* Offset voltage: ±150 µV max.
* Offset drift: 0.5 µV/°C max.
* Enhanced PWM rejection
* 2.7 to 5.5 V supply voltage
* Internal fixed gain
* TSC2020:

TSC2021 Applications

* High-side/low-side current sensing
* Battery management system
* 48 V power distribution
* 48 V power tools
* Motor control

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TSC2021, TSC2020. Please refer to the document for exact specifications by model.

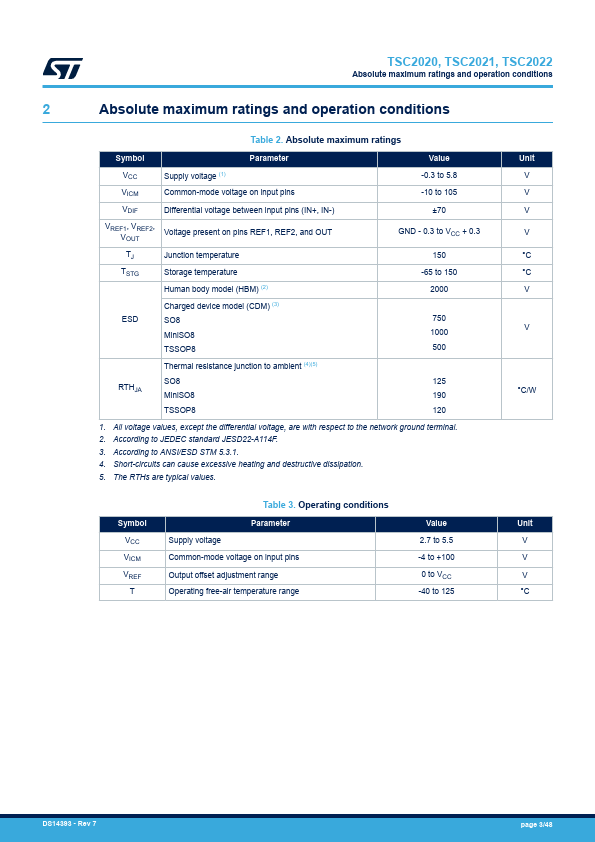

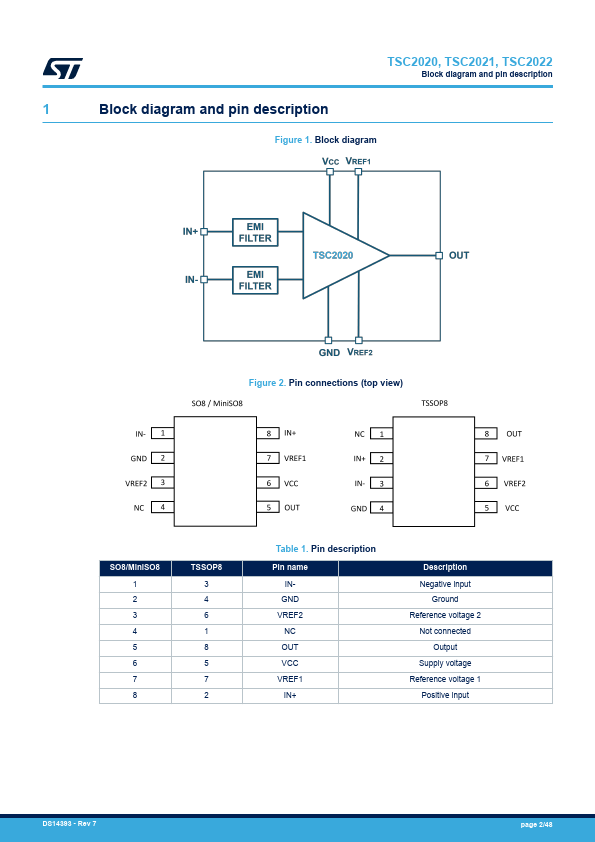

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TSC2021, TSC2020
Manufacturer
STMicroelectronics ↗
File Size
4.80 MB
Datasheet
TSC2020-STMicroelectronics.pdf
Description
bidirectional current sense amplifier
Note
This datasheet PDF includes multiple part numbers: TSC2021, TSC2020.
Please refer to the document for exact specifications by model.
