TSC2007, TSC2007_Burr - 4-Wire Micro TOUCH SCREEN CONTROLLER

Burr-Brown

The TSC2007 by Burr-Brown is a 4-Wire Micro TOUCH SCREEN CONTROLLER. Below is the official datasheet preview.

📥 Download Datasheet

TSC2007 4-Wire Micro TOUCH SCREEN CONTROLLER by Burr-Brown - Datasheet Preview — Official preview page of the **TSC2007** 4-Wire Micro TOUCH SCREEN CONTROLLER datasheet (Burr-Brown).

Datasheet Details

Part number	TSC2007, TSC2007_Burr
Manufacturer	Burr-Brown
File Size	722.35 KB
Description	4-Wire Micro TOUCH SCREEN CONTROLLER
Datasheet	TSC2007_Burr-Brown.pdf
Note	This datasheet PDF includes multiple part numbers: TSC2007, TSC2007_Burr. Please refer to the document for exact specifications by model.

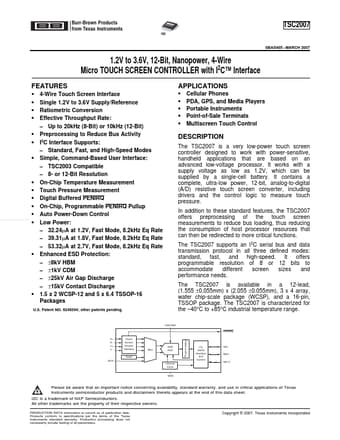

Additional preview pages of the TSC2007 datasheet.

TSC2007 Product details

Description

The TSC2007 is a very low-power touch screen controller designed to work with power-sensitive, handheld applications that are based on an advanced low-voltage processor.

Features

4-Wire Touch Screen Interface Single 1.2V to 3.6V Supply/Reference Ratiometric Conversion Effective Throughput Rate:.
Up to 20kHz (8-Bit) or 10kHz (12-Bit) Preprocessing to Reduce Bus Activity I2C Interface Supports:.
Standard, Fast, and High-Speed Modes Simple, Command-Based User Interface:.
TSC2003 Compatible.
8- or 12-Bit Resolution On-Chip Temperature Measurement Touch Pressure Measureme.
