STWA88N65M5, STW88N65M5 - N-Channel Power MOSFET

STMicroelectronics

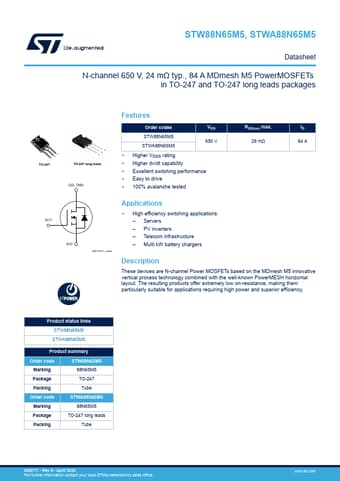

STWA88N65M5 Datasheet Preview — This datasheet PDF includes multiple part numbers: STWA88N65M5, STW88N65M5. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	STWA88N65M5, STW88N65M5
Manufacturer	STMicroelectronics ↗
File Size	425.38 KB
Description	N-Channel Power MOSFET
Datasheet	STW88N65M5_STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STWA88N65M5, STW88N65M5. Please refer to the document for exact specifications by model.

STWA88N65M5 Product details

Description

These devices are N-channel Power MOSFETs based on the MDmesh M5 innovative vertical process technology combined with the well-known PowerMESH horizontal layout.

Features

Order codes VDS STW88N65M5 STWA88N65M5 650 V.
Higher VDSS rating.
Higher dv/dt capability.
Excellent switching performance.
Easy to drive.
100% avalanche tested RDS(on) max. 29 mΩ ID 84 A G(1) S(3) AM01475v1_noZen.
