STW70N65DM6-4 N-channel 650V 68A Power MOSFET

STW70N65DM6-4 Description

STW70N65DM6-4 Datasheet N-channel 650 V, 36 mΩ typ., 68 A MDmesh DM6 Power MOSFET in a TO247‑4 package .
This high-voltage N-channel Power MOSFET is part of the MDmesh DM6 fastrecovery diode series.

STW70N65DM6-4 Features

* Gate(4) Driver source (3) 2 34 1 TO247-4 Drain(1, TAB) Order code VDS RDS(on) max. ID STW70N65DM6-4 650 V 40 mΩ 68 A
* Fast-recovery body diode
* Lower RDS(on) per area vs previous generation
* Low gate charge, input capacitance and resistance
* 100% av

STW70N65DM6-4 Applications

* Power source (2) AM10177v2Z

📥 Download Datasheet

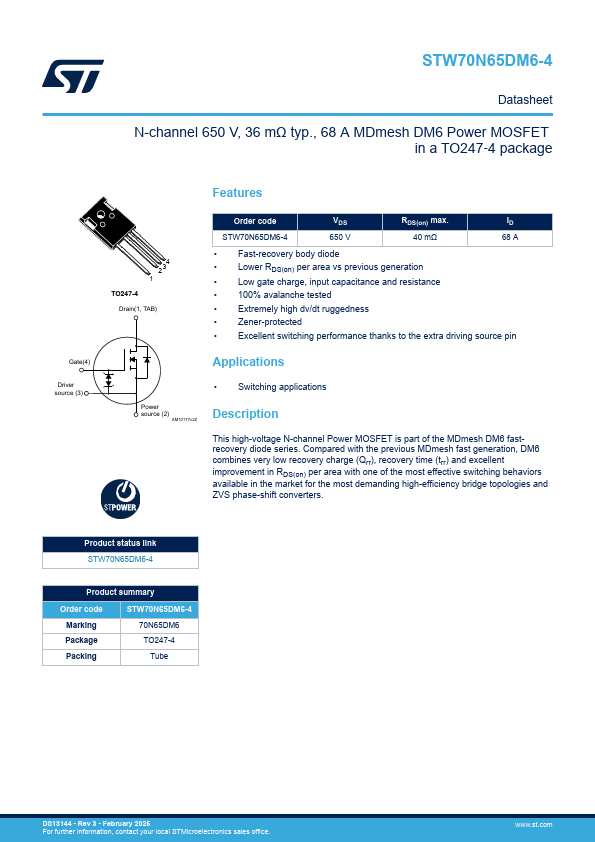

Preview of STW70N65DM6-4 PDF

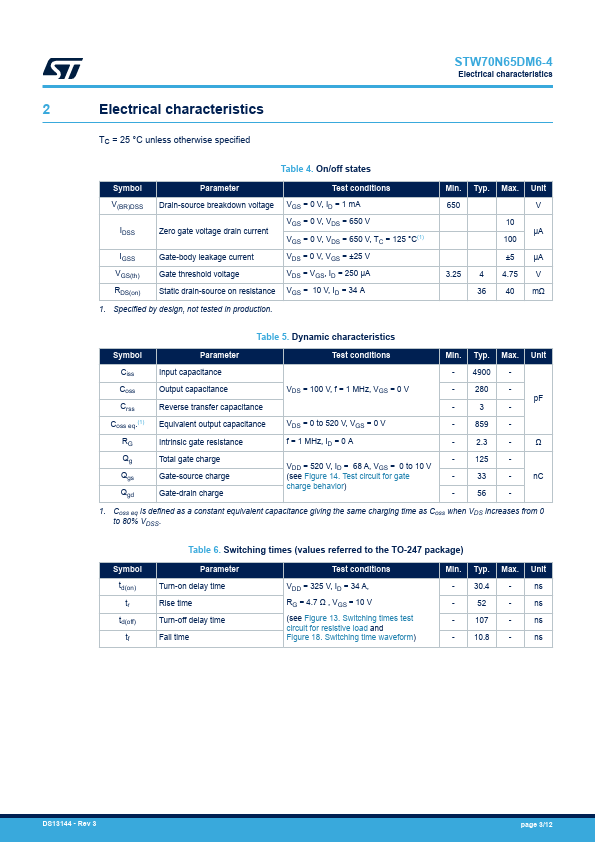

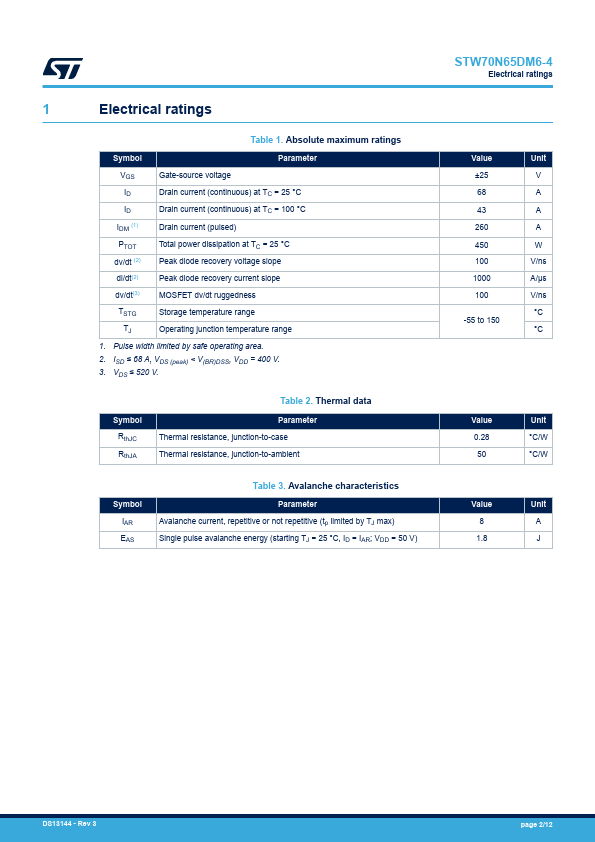

datasheet Preview Page 2 datasheet Preview Page 3
